C&I BESS
Accueil / Produits / C&I BESS / HLH-NU 112kWh~261kWh High-Capacity Energy Storage Cabinet Professional LiFePO4 BESS for Commercial Use

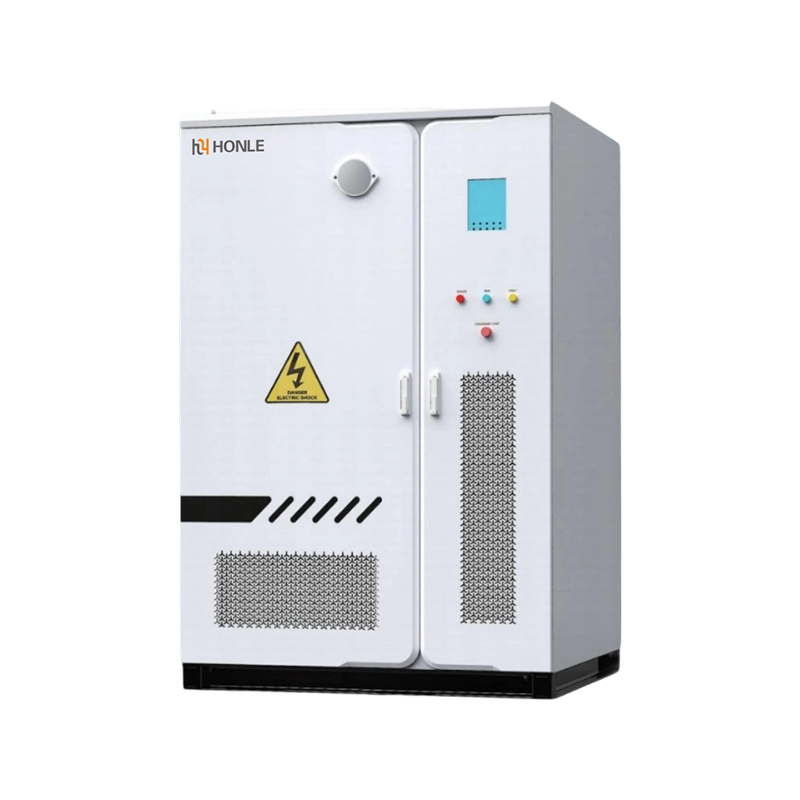

HLH-NU 112kWh~261kWh High-Capacity Energy Storage Cabinet Professional LiFePO4 BESS for Commercial Use

HLH-NU 112kWh~261kWh High-Capacity Energy Storage Cabinet Professional LiFePO4 BESS for Commercial Use

Principales fonctionnalités et applications

  This integrated cabinet series combines battery modules, power control, and system protection within a unified architecture, reducing external wiring complexity and improving system reliability. The use of LFP battery technology enhances thermal stability and supports long-duration energy storage under demanding operating conditions.

  A built-in Energy Management System (EMS) works alongside the Battery Management System (BMS) to deliver high-level operational safety and intelligent control. The EMS enables real-time remote monitoring of system status, including energy flow, operating parameters, and fault conditions. This supports proactive system management, operational optimization, and timely maintenance planning.




  • HLH-NU 112kWh~261kWh High-Capacity Energy Storage Cabinet Professional LiFePO4 BESS for Commercial Use
INSTALLATION ET COMPATIBILITÉ

  Multiple protection mechanisms are embedded to manage risks related to overcharge, over-discharge, overheating, abnormal voltage, and electrical faults.

  The combination of EMS and BMS coordination enhances overall system safety, particularly in high-capacity C&I energy storage environments. The scalable capacity design allows the system to adapt to growing energy demand without disrupting existing infrastructure, supporting long-term energy planning and operational flexibility.

Contactez-nous
Détails du produit

The Energy Storage Integrated Cabinet Series (112kWh–261kWh) is a large-capacity commercial and industrial battery energy storage solution developed for projects with higher power demand, longer operation cycles, and advanced energy management requirements. This series is positioned for medium to large C&I BESS deployments, supporting applications that require stable power delivery, intelligent energy scheduling, and strong system-level safety control.

The system is built with all-new Grade A LFP battery cells, providing reliable electrochemical stability and consistent performance across extended service periods. With a cycle life of up to 6000 cycles, the cabinet supports high-frequency daily charging and discharging, making it suitable for peak shaving, load balancing, renewable energy integration, and backup power operations. The wide capacity range from 112kWh to 261kWh allows flexible configuration based on site scale and energy usage patterns.

Designed with an IP54 enclosure, the integrated cabinet can be deployed in outdoor environments exposed to dust and moisture, reducing installation limitations for industrial parks and commercial facilities. The system supports both on-grid and off-grid operating modes, enabling grid interaction during normal conditions while maintaining independent power supply during grid outages. Compliance with FCC, CE, UN38.3, MSDS, and RoHS standards supports application in diverse regulatory markets and ensures safe transportation, installation, and operation.

Model

HLH-NU-NU005

HLH-NU-NU006

HLH-NU-NU007

Battery

Type

   358.4V314Ah

    768V314Ah

832V314Ah

Rated Energy

112kWh

241kWh

261kWh

WorkingVltoge Range

  313.6-403.2V

    672-864V

728-936V

BMS Communication

Ethernet/RS485/CAN

Ethernet/RS485/CAN

Ethernet/RS485/CAN

PCS

AC Side

AC Rated Power

50kW

125KW

Max Power

60kW

150kW(1min)

Max Current

86A

216A

Rated Voltoge

380V/400V

Rated Frequency

50/60Hz

DC Side

Max Input Voltoge

850V

950V

950V

Max Current

100A

157A

MPPT(optional)

Low Voltage Side

Rated Power

65kW

120kW

Max Current

36+36+36+36A

60+60A

MPPT Voltoge Range

200~850V

200-950V

General Parameters

Product Dimension of the Cabinet

1086*2058*1110mm

1500*2306*1539mm

1450*2258*1345mm

IP Rating

IP54

Working Temperature

-20~55℃

Coling

Air-cooled

Air-cooled

Lquid-cooled

Security Certification

CE/UN38.3

Net Weight

1050kg

3000kg

3000kg

40HO Container

20 pcs

8 pcs

8 pcs

SCÉNARIOS D'APPLICATION
  • The Energy Storage Integrated Cabinet Series (112kWh–261kWh) is suitable for a wide range of commercial and industrial scenarios, including manufacturing facilities, industrial parks, logistics hubs, commercial complexes, and data-oriented infrastructures. In these environments, the system supports peak demand management by storing energy during low-demand periods and supplying power during peak load hours.
  • In solar-plus-storage projects, the cabinet improves renewable energy utilization by capturing surplus photovoltaic power and releasing it when generation is insufficient. For facilities requiring high power continuity, the system provides reliable backup power during grid interruptions, helping to protect critical equipment and maintain operational stability.
  • The outdoor-ready IP54 design allows flexible placement near load centers, minimizing transmission losses and improving system efficiency. With real-time remote monitoring and intelligent energy management, the system supports modern C&I energy strategies focused on resilience, efficiency, and optimized energy use.
