Accueil / Produits / Stockage d'énergie résidentiel / Stockage d'énergie au sol / HLX Floor-Standing LiFePO4 Battery All-in-One Home Energy Storage System with Slim Design

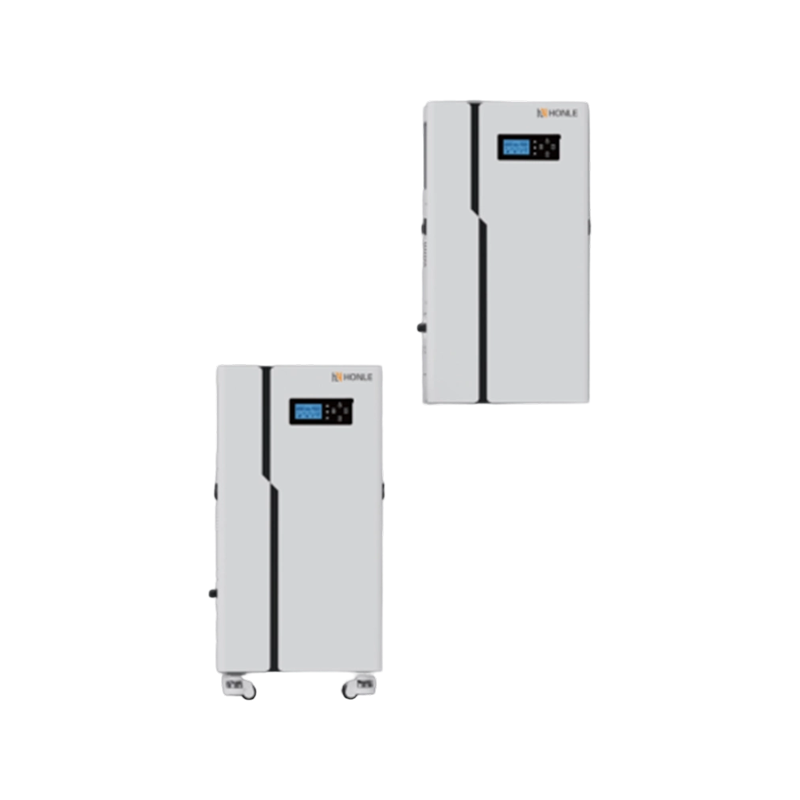

HLX Floor-Standing LiFePO4 Battery All-in-One Home Energy Storage System with Slim Design

HLX Floor-Standing LiFePO4 Battery All-in-One Home Energy Storage System with Slim Design

Principales fonctionnalités et applications

Integrated All-in-One Design: Combines PCS and battery in a single cabinet, reducing installation steps and saving indoor space.

Flexible Placement: Floor-standing structure allows placement without wall mounting, suitable for homes with limited wall space.

Parallel Scalability: Supports up to 15 battery units in parallel, enabling homeowners to expand system capacity for backup power, self-consumption, or daily energy management.

High Operational Safety: Built-in BMS monitors voltage, current, temperature, and battery status, automatically protecting the system under abnormal conditions.

  • HLX Floor-Standing LiFePO4 Battery All-in-One Home Energy Storage System with Slim Design
INSTALLATION ET COMPATIBILITÉ

High-Cycle LFP Battery Technology: Grade A LFP cells provide up to 6000 cycles, offering long-term reliability for daily energy storage.

Thermal and Performance Stability: LFP chemistry ensures consistent output and strong thermal stability, suitable for varied indoor environments.

Wide Temperature Operation: Operates effectively between –20°C and +55°C, supporting diverse residential conditions.

Standards Compliance: Fully compliant with FCC, CE, UN38.3, and MSDS, guaranteeing safety and global compatibility.

Modular Energy Expansion: Parallel capability allows system expansion based on household energy demands or future solar PV system growth.

Contactez-nous
Détails du produit

The All-in-One Floor-Standing Energy Storage System with Integrated PCS & Battery is a modular residential energy storage solution designed for indoor deployment and flexible energy management. This all-in-one unit combines the inverter (PCS) and battery system within a single cabinet, simplifying installation and reducing wiring complexity. Built with brand-new Grade A LFP battery cells, the system provides up to 6000 charge-discharge cycles, ensuring reliable long-term performance. The LFP chemistry offers excellent thermal stability and consistent output, making it suitable for daily home energy use. With an IP20 protection rating, the system is tailored for indoor environments such as garages, utility rooms, and residential energy storage areas. Additionally, it supports parallel operation of up to 15 units, allowing homeowners to scale storage capacity according to solar PV expansion or household electricity needs. The operating temperature range of –20°C to +55°C guarantees stable performance under varying environmental conditions. Compliance with FCC, CE, UN38.3, and MSDS standards ensures safe and reliable residential deployment.

Model

HLX-EU105

HLX-EU106

HLX-EU107

Battery

Batter Type

25.6V100Ah

25.6V200Ah

51.2V100Ah

Rated Voltoge

25.6V

25.6V

51.2V

Working Voltoge Range

21.6V-28.8V

21.6V-28.8V

43.2V-57.6V

Rated Energy

2.56kWh

5.12kWh

5.12kWh

PV input

Max PVOCV

160VDC

500VDC

MPPT Voltoge Range

30~128VDC

120~450VDC

Max Input Power

1600W

6000W

Max Charge-Discharge Current

16A

22A

AC

Input Voltge

220-240VAC

Output Voltage

220/230/240VAC

Optional Voltoge Range

170V-280Voc(UPS/90V-280Vac(APL)/
184V-253VAC(VDE)

170V-280Voc(UPS)
90V~280VAC(APL)

Input Current

14A

22A

Output Current

14A(Term)/10A(Outlet)

22ATerm)/10A(Outlet)

Frequency

50Hz/60Hz

50Hz/60Hz

Rated Output Power

3000W

5000W

General Parameters

Communication

RS485/WIFI

Working Altitude

≤2000m

Cooling

Natural

Installation

Floor Standing

IP Rating

IP20

Cycle Life

≥6000@25℃,80%DOD

Working Temperature

0~55℃

Storoge Temperature

-20~55℃

Humidity

≤80%

Product Dimension

450*671*350mm

Pockoge Dimension

550*770*570mm

Net Weight

40kg

56kg

63kg

20GP Container

112PCS

40HO Container

224PCS

SCÉNARIOS D'APPLICATION
  • Residential Solar Energy Storage: Efficient integration with rooftop PV systems, maximizing self-consumption and energy savings.
  • Backup Power Support: Provides stable electricity during grid outages for houses, villas, or multi-story residential buildings.
  • Daily Energy Management: Optimizes household energy use, supporting load shifting, peak shaving, and energy storage optimization.
  • Indoor Utility Installations: Designed for garages, equipment rooms, and utility areas, offering a compact and safe energy storage solution.
